The Resource For All Your Welding, Gases and Safety Supplies!
The Resource - (Safety Section)
8.2
• 3 year warranty
• Internal 9-13 shade, sensitivity and delay adjustments
• Grind mode
• Solar powered with 2 replacement AAA battery back up (included)
• Lightweight (18 oz) high impact resistant nylon shell
• 3.82” x 1.79” viewing area
• 1/25,000 second darkening time
• 5 Amp TIG rating
• Auto On/Off
• 5 point adjustment headgear with large 2/3 cushioned sweatband
• ANSI Z87.1-2003 / CSA Z94.3, CE/EN 379 / DIN Approved
• Lens Performance EN 379 (DIN 1/2/1/2)
○ Optical Ranking
○ DIN 1/2/1/2 (all ratings are 1 to 3, 1 being the best)
○ The first number rates the “Optical Class”
▪ Optical Class is a measure of light distortion. Light distortion is when you look through a
glass of water verses straight at the object.
○ The second number rates the Diffusion of light class
▪ Diffusion is due to minute particles caught between the glass packs during the lamination
process resulting in light rays spreading sideways creating a light curtain in front of your
eyes.
○ The third number rates the variations in luminous transmittance class
▪ Luminous Transmittance measures whether the auto-darkening lens has uniform shade
across the entire surface of the lens when looking through the lens at a 90 degree angle.
○ The last number rates the angle of dependence of luminous transmittance class (currently an
optional test, soon to be mandatory).
▪ Angle of dependence of luminous transmittance class measures the variation in the shade
number when looking through the auto-darkening lenses with an angle up to 15 degrees.
When you look through the glass at a 90 degree angle (straight through the glass) the light
will be travelling through less glass than if you were to look through the glass at an angle of
15 degrees (sideways). By looking through a greater quantity of glass the light can cause a
variation in the dark shade level of the lens.
Available exclusively through Independent Welding
Distributor Members in North America.
Weldma
rk WEM WM8VS9-13H, W
EM BF8VS9-13
and WEM RF8VS9-13 Auto Darkening Helmet

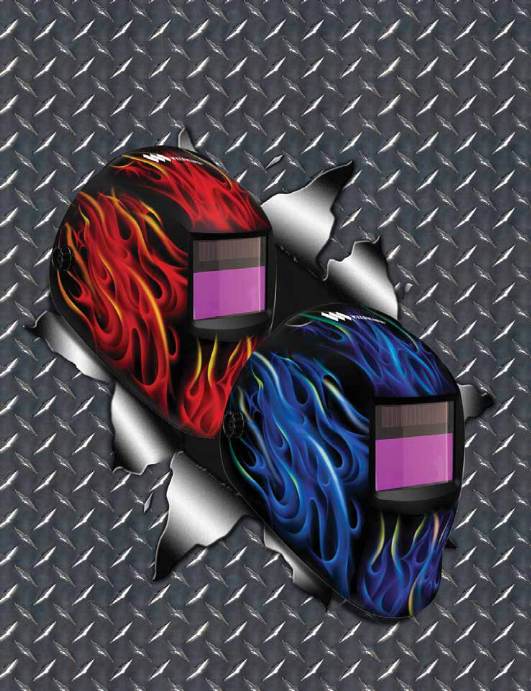

Weldmark Auto Darkening Helmets and Accessories
Part No.
Description
WEM WM8VS9-13H Weldmark Variable Shade w/Grind Mode Auto Darkening Helmet 9-13
WEM BF8VS9-13
Weldmark Blue Flame “STEEL WORKS” Variable Shade AD Helmet 9-13 w/Grind
WEM RF8VS9-13
Weldmark Red Flame “STEEL WORKS” Variable Shade AD Helmet 9-13 w/Grind
WEM WMFC15
Front Cover Lens Pack of 5 for WM8VS9-13H
WEM WMIC72SG Inside Cover Lens Pack of 5 for WM8VS9-13H
WEM WMHG15
Headgear for WM8VS9-13H
WEM WMSB15
Cushioned Sweatband for WMHG15
WEM WMRL72SG Replacement Auto Darkening Lens for WM8VS9-13H
WEM HH-ADPTR Hard Hat Adaptor for WEM WM8VS9-13H
